The Adventurer 3 is a 3D printer produced by FlashForge. This portable printing machine is the first in the firm’s Adventurer line that was introduced at CES 2018. This Flashforge Adventurer 3, which has been in the industry throughout the year and has a construction dimension of 150 x 150 x 150mm, has been labelled as a user-friendly, light, and cheap system suitable for both the manufacturing and educational sectors. This 3D printer also has a cloud-based 3D printing functionality, a replaceable extruder mechanism, and a 2 Megapixel camera.
Furthermore, its efficiency is among the most significant benefits of the Flashforge Adventurer 3 3D printer. This printer may serve various functions and is very productive while being reasonably priced. In addition, it is the first best-handled printer that combines low-cost and effective choices in a single device, leading to a genuinely revolutionary 3D printing technology.
Features And Characteristics Of Flashforge Adventurer 3
The Flashforge Adventurer 3 is a small, well-designed 3D printer with a wholly sealed print chamber. Three parts of the machine base are transparent, allowing a safe yet visual view of the printing procedure. Moreover, the filament spool chamber is placed on the printer’s right and is easily accessible. Even if the chamber is not meant to accept every type of filament spool, you can always position the spool near the printer or build an expanded holder. Here are some of the excellent characteristics of Flashforge Adventurer 3 that make it appealing to customers looking for a versatile printer.
Specifications
- Nozzle diameter: 0.4 mm
- Layer height: 0.1 – 0.4 mm
- Maximum bed temperature: 100°C
- Number of print heads: 1
- Body material: PC/ ABS
- Filament diameter: 1.75 mm
- Build volume: 150 x 150 x 150 mm
- Screen: 2.8″ LCD Touch Screen
- Dimensions, mm: 388 x 340 x 405
Slicing Software
The company’s suggested method in utilising a Flashforge Adventurer 3 3D printer is to utilise FlashPrint, a unique software application. Based on the conditions, FlashPrint has a variety of fully prepared printing configurations intended to meet the demands of various users. If you are an experienced user, you may re-adjust all configuration settings in Expert Mode. The slicer includes several practical tasks, including manual structural system modification and the capability to slice a huge model or turn photos into three-dimensional structures.
Initial Setup
In printing your initial design, you must adjust the printer, which is a simple process. To do so, use the touchscreen interface to select the adjustment tool and decrease the extruder. Then, using the arrows, position the nozzle to hit the surface and OK.
How Does The Flashforge Adventurer 3 Work?
A tiny touchpad controls the Flashforge Adventurer 3 with a rapid and accurate integrated monitor. The interface aims to be as user-friendly as possible, with numerous clear and well-styled icons and English labelling. A simplified version of the technology used in the well-known Prusa printer is used to simulate the printer kinematics. In addition, the Z-axis lead screw is outfitted with two tiny trapezoidal nuts. The warmed bed is combined with a sticker to improve print adherence. The base is also versatile and detachable, allowing for easy separation of printed items.
Furthermore, the nozzle is housed within the plastic case, which inhibits the extruder from disassembling. On the other hand, it adds another layer of protection by making it difficult to be burned by contacting the extruder. The bottom side of the extrusion is outfitted with two LED bulbs, providing extra illumination and allowing the printing procedure to occur in poorly lighted areas. In addition to its small size, the Adventurer 3’s Bowden-type extruder offers rapid and high-quality printing.
It also has a filament lineout sensor, which means the procedure will be immediately paused when no more filament is utilised. Forget the printer’s simple look since it is packed with essential functions. There are also choices for Wi-Fi connection, cloud printing, and even an HD camera installed within the chamber, allowing you to monitor the printing by linking to the cloud service remotely.
What Makes The Flashforge Adventurer 3 Easy And Good To Use?
- Automated Filament Unloading And Loading. With the inventive filament feeding system, you can enter the filaments into the inlet and wait for the filament to be loaded into the nozzle. The touchscreen may be used to control additional unloading and loading functions.
- Interface With A Screen. Each movement is apparent thanks to the 2.8-inch colour touchscreen interface. The printing progress is also updated frequently.
- Nozzle Is Detachable. Only three steps are required to complete all nozzle change operations.

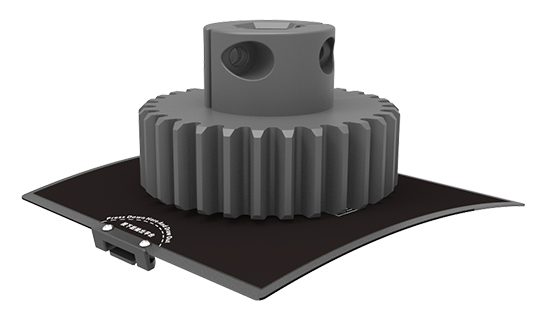

- Versatile, Heatable Foundation For Simple Item Extraction. The Flashforge Adventurer 3 has a heatable platform that can attain 100°C. Any size model may stick to the platform. Furthermore, the platform’s flexible properties allow the items to be withdrawn swiftly by simply bending them.
- Several Connections. The Flashforge Adventurer 3 3D printer offers five connection methods for swiftly transferring print files. It also enables Wi-Fi wireless connectivity.
Conclusion
The Flashforge Adventurer 3 is a well-designed gadget with various helpful features. The translucent casing sides, for example, and additional light sources allow a complete perspective of the printing procedure. Furthermore, the HD camera positioned within the chambers will let you see the procedure in real-time, anytime you like, despite your distance. Gadget calibration and the initial setup are also extremely simple. You will like the variety of possibilities provided by the FlashPrint slicing programme.
In addition, the Flashforge Adventurer 3 3D printer is an excellent option for expert 3D manufacturers or small businesses. It is also ideal for entry-level hobbyists, youngsters, or professors since it is portable, dependable, and secure, making it simple to operate.
